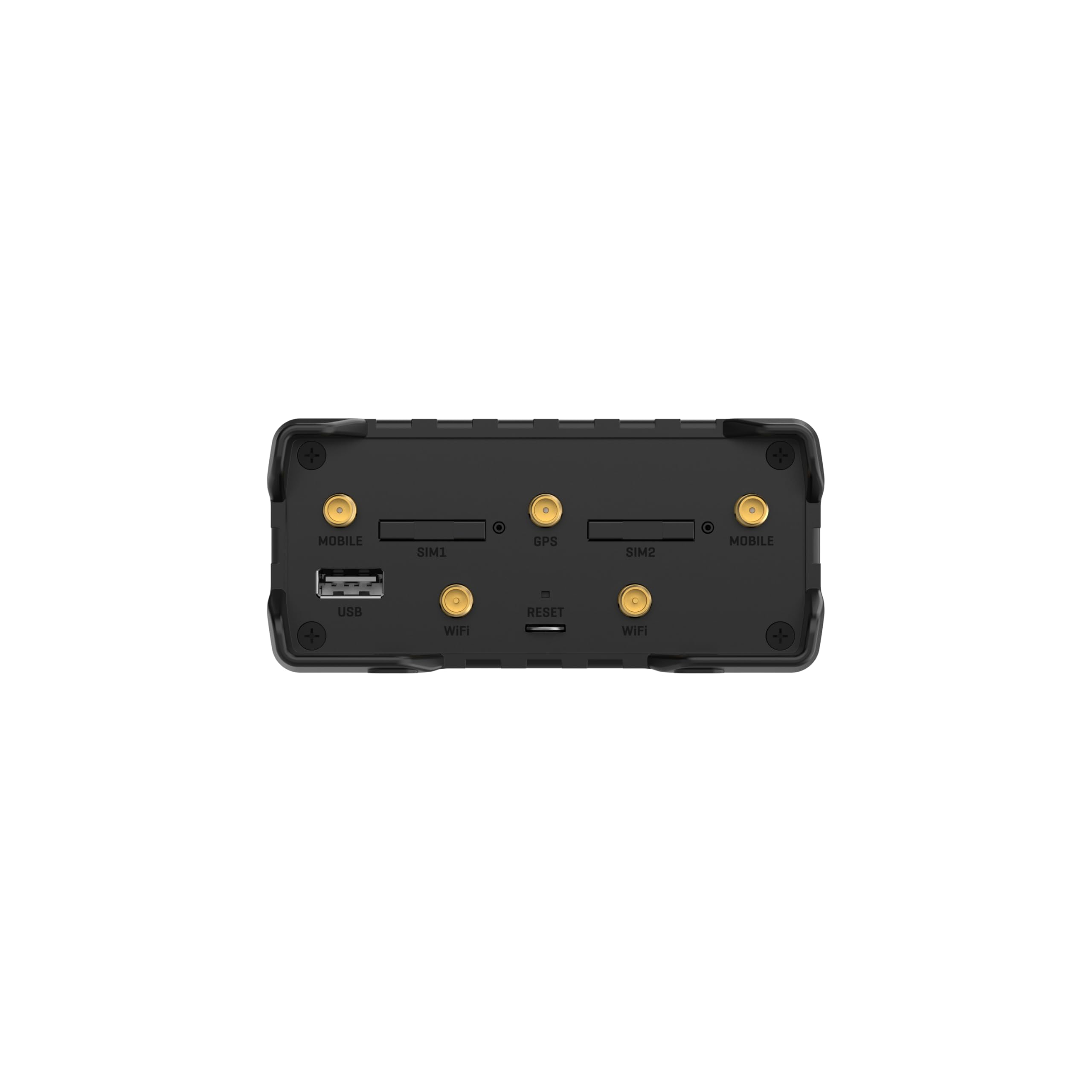

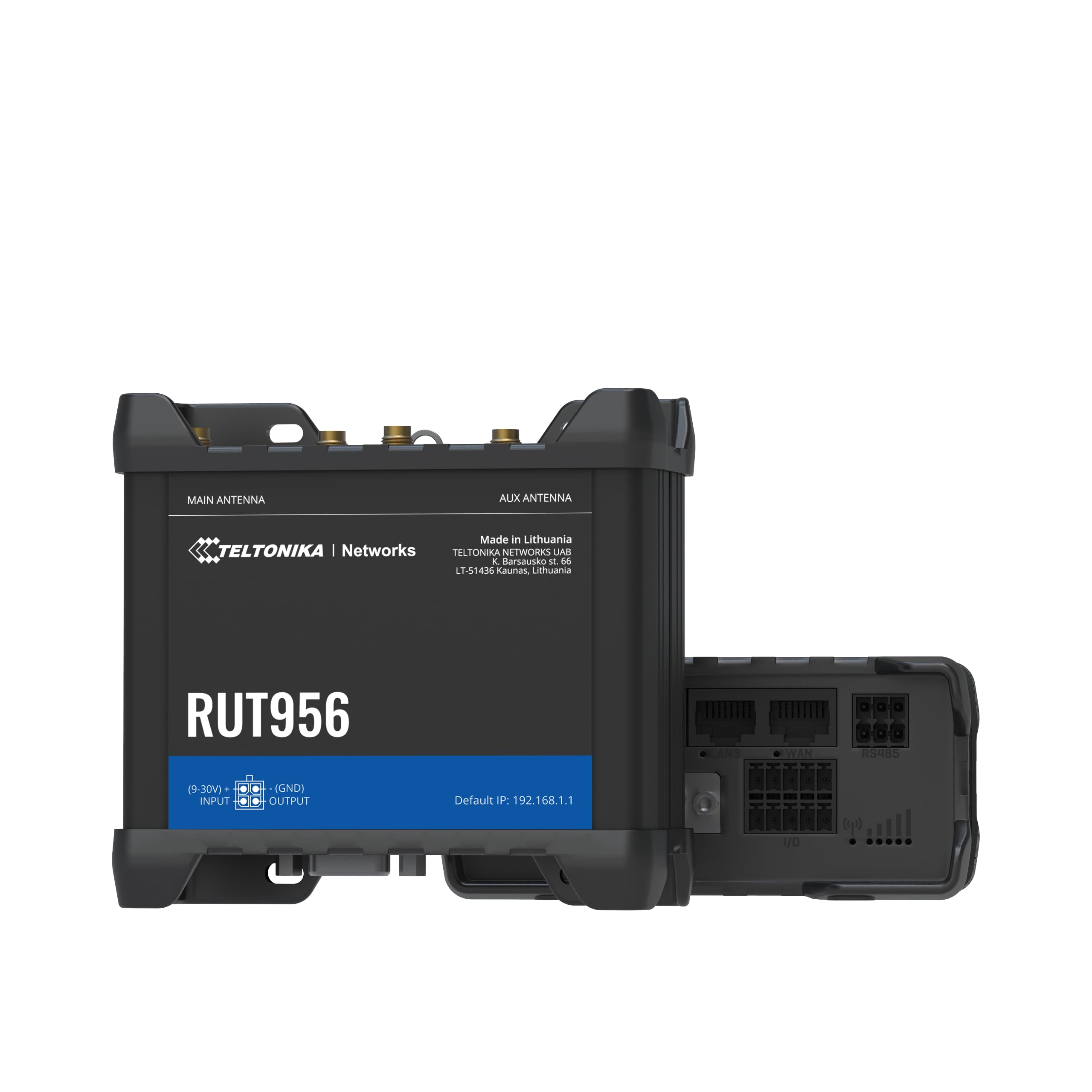

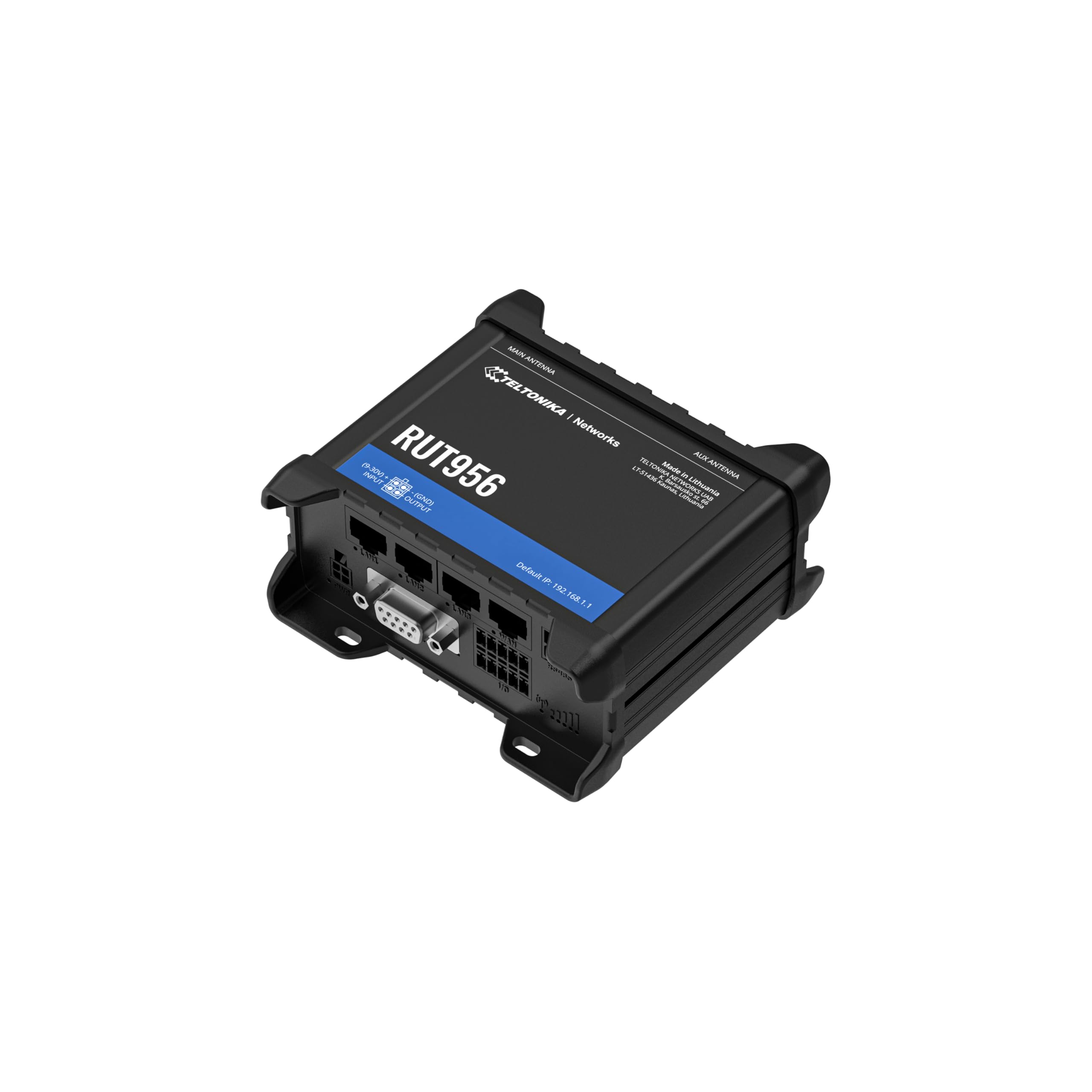

Industrial Cellular Router RUT956 is an industrial router that combines cellular, Wi-Fi, and wired connectivity options with automatic WAN failover and GNSS capabilities. Serial communication interfaces enable integrating more varied devices into the solution ecosystem, while I/O and advanced RutOS software facilitate equipment control, automation, and event notifications. Hardware Mobile 4G LTE Cat 4 up to 150 DL/50 UL Mbps; 3G up to 21 DL/5.76 UL Mbps; 2G up to 236.8 DL/236.8 UL kbps CPU Mediatek, 580 MHz, MIPS 24KEc RAM 128 MB, DDR2 Storage 16 MB, NOR Flash Powering options 4-pin industrial DC power socket, 9 - 30 VDC SIM 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders, eSIM (Optional) Antenna connectors 2 x SMA for mobile, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNSS Ethernet 4 x 10/100 Ethernet ports: 1 x WAN (configurable as LAN), 3 x LAN Wi-Fi IEEE 802.11b/g/n, Access point (AP), Station (STA) Inputs/Outputs On 4-pin socket: 1 x Digital input, 1 x Digital open collector output On 10-pin socket: 1 x Isolated digital input, 1 x Digital dry input, 1 x Analog input, 1 x Isolated open collector output (requires external voltage), 1 x Relay output (non-latching) Other USB, Micro SD Operating temperature -40 °C to 75 °C Housing Aluminium housing with DIN rail mounting option, plastic panels with flat mounting option Serial 1 x RS232, 1 x RS485 GNSS GPS, GLONASS, BeiDou, Galileo, QZSS Supported frequencies 4G (LTE-FDD): B1, B3, B7, B8, B20, B28A 3G: B1, B8 2G: B3, B8 Software Operating system RutOS (OpenWrt based Linux OS) Mobile features Auto APN, Band lock, SIM switch, Operator black/white list, Data/SMS limits Network features Routing, Failover, Firewall, DHCP, DDNS, QoS / SQM, Load Balancing, VoIP passthrough, Connection monitoring, SSHFS VPN and tunneling OpenVPN, OpenVPN Encryption, IPsec, GRE, PPTP, L2TP, ZeroTier, WireGuard, Tinc Monitoring and Management WEB UI, FOTA, SSH, SMS, Call, Email, TR-069, MQTT, SNMP, JSON-RPC, RMS Cloud solutions RMS, ThingWorx, Cumulocity - Cloud of Things, Azure IoT Hub Serial Console, Over IP, Modem, NTRIP, Modbus Modbus TCP client, TCP server, RTU master, RTU gateway, Modbus over MQTT NTP NTP Server, NTP Client, Sync with: External NTP server, GNSS, Mobile operator GNSS NMEA forwarding, AVL, Geofencing Cellular Router for Public Transport Connectivity Public transport relies on secure and uninterrupted connectivity to integrate safety and convenience features like CCTV cameras and panic buttons. The RUT956 LTE router ensures continuous operations with dual SIM functionality, automatically switching to a backup source in case of connectivity failure. Remote Management System An all-in-one, user-friendly IoT platform providing an easy way to stay on top of your solution remotely.
